ANVR16P222T
ANVR16P24T
ANVR16P28T
ANVR16P216T
16ch, 16 PoE, 4K RESOLUTION, H.265 NVR, 2TB
16ch, 16 PoE, 4K RESOLUTION, H.265 NVR, 4TB
16ch, 16 PoE, 4K RESOLUTION, H.265 NVR, 8TB
16ch, 16 PoE, 4K RESOLUTION, H.265 NVR, 8TB
Storage Variants Available:
- 2TB HDD
- 4TB HDD
- 8TB HDD
- 16TB HDD

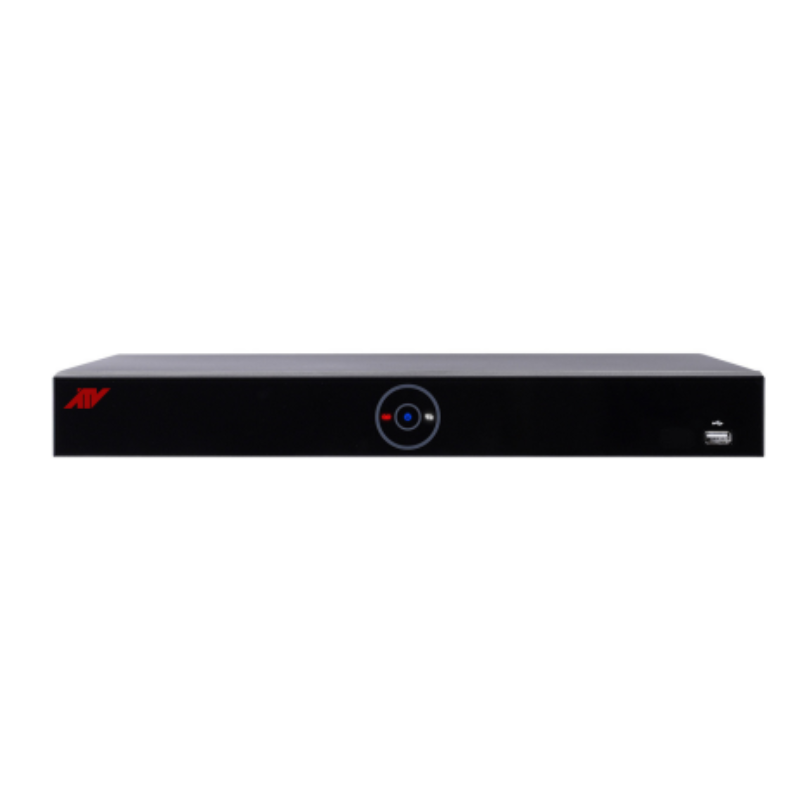

16ch, 16 PoE, 4K RESOLUTION, H.265 NVR
Product Features:
- Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
- H.265 Compression for Best-in-Class Recording and Storage
- 16ch Recording up to 4K (8MP) Resolution Images
- Concurrent Display on HDMI and VGA Monitor Outputs
- Embedded PoE Switch for all Video Channels
- 2 SATA HDD Bays
VIDEO
-
Video Input
16 IP, up to 4K (8MP)
-
Display Output
1 VGA, 1 HDMI; 3840x2160 ~ 1024x768 @ 400 / 480fps
-
Display Mode
1 / 4 / 8 / 9 / 10 / 16 Split, Sequence
RECORDING
-
Compression
H.264, H.265
-
Recording Speed
400 / 480fps @ 8MP
-
Max. Recording
160Mbps
-
Recording Mode
Continuous, Motion, Alarm, C+M, C+A, M+A, C+M+A, Panic
-
Pre / Post Alarm
1~3sec / 5sec~1hour
PLAYBACK
-
Simultaneous Playback
1 / 4 / 8 / 9 / 10 / 16 Split
-
Playback Mode
Backward, Forward 2~64x, Time-lapse
-
Search Mode
Time, Event, Thumbnail, Text, Smart (Motion), VCA
NETWORK
-
Ethernet
WAN: 1 RJ45 10/100/1000 Base-T PoE : 16 RJ45 10/100 Base-T PoE Power : 120W(IEEE802.3a), VCA Compliance)
-
Max. Output Throughput
Unlimited (Guarantee 288Mbps, Support Bandwidth Control)
-
Remote Monitoring
Web, ATVision IP CMS & Mobile Apps
GENERAL
-
Text In
POS/ATM (ASCII, Network, VSSi-Pro)
-
Internal HDD
2 SATA up to 12TB each, total 24TBB
-
Backup
USB: H4V, MP4 File Formats
-
Audio
1 RCA Input, 16 IP Cameras / 1 RCA, 1 HDMI
-
Alarm
16 Input / 1 Output (Terminal Block) Relay 1A-24VDC / 0.5A~125VAC
-
Serial Port
1 RS485 (Terminal Block)
-
USB
2 USB2.0
-
Rack Mountable
Rack Ears Included
-
Operating Humidity
0~90% RH (Non-Condensing)
-
Operating Temperature
32°~104°F (0~+40ºC)
-
Power Supply
49VDC, 4.58A (220W) (See Note 1 Below)
-
Power Consumption
40W (with HDD and w/o PoE)
-
Dimension(WxHxD)
14.7 x 1.7 x 12.5in (375 x 44.9 x 318.2mm)
-
Net Weight
5.1lb (2.3kg) (without HDD)
-
Conformity Certifications
FCC, CE, UL
ACCESSORIES
-
XDLBB2
Recorder Lockbox; Black
Specification Sheet
Download HereUser Manual
Quick_Setup_Guide_Network_Video_Recorder_210504
