NVR32P48T
NVR32P412T
NVR32P416T
NVR32P418T
NVR32P420T
NVR32P424T
NVR32P432T

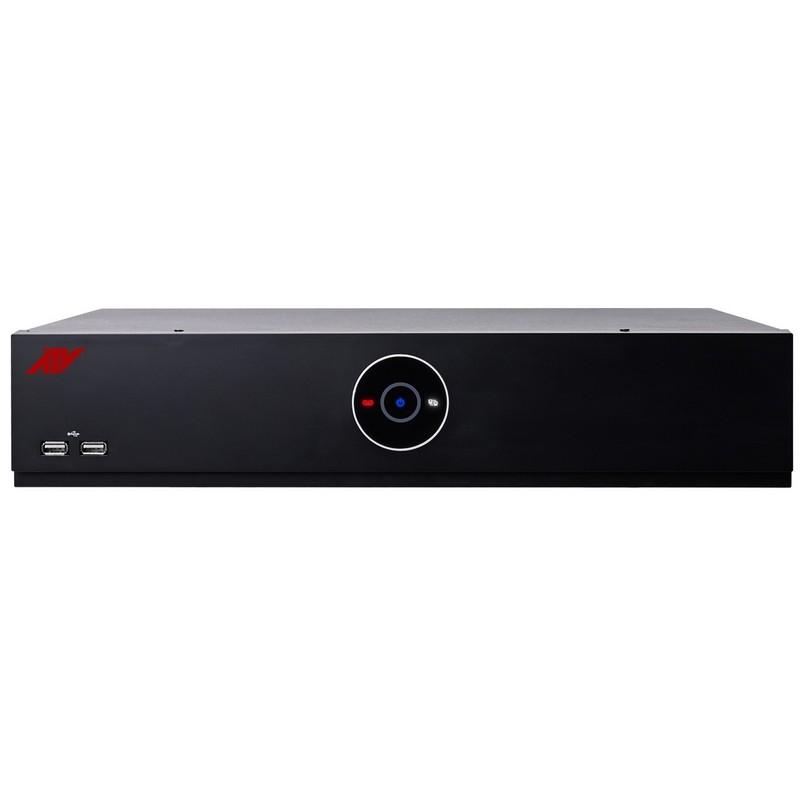

NVR, 32-IP, 4K in/out, 4 HDD slots, PoE, 8TB
NVR, 32-IP, 4K in/out, 4 HDD slots, PoE, 12TB
NVR, 32-IP, 4K in/out, 4 HDD slots, PoE, 16TB
NVR, 32-IP, 4K in/out, 4 HDD slots, PoE, 18TB
NVR, 32-IP, 4K in/out, 4 HDD slots, PoE, 20TB
NVR, 32-IP, 4K in/out, 4 HDD slots, PoE, 24TB
NVR, 32-IP, 4K in/out, 4 HDD slots, PoE, 32TB
Storage Variants Available:
- 8TB HDD
- 12TB HDD
- 16TB HDD
- 18TB HDD
- 20TB HDD
- 24TB HDD
- 32TB HDD
- H.265 Compression for Best-in-Class Recording and Storage
- 4ch Recording up to 4K (8MP) Resolution Images
- Concurrent Display on HDMI and VGA Monitor Outputs
- Embedded PoE Switch for 16 Video Channels
- 4 SATA HDD Bays
VIDEO
-
Video Input
32 IP, up to 4K (8MP)
-
Display Output
1 VGA, 1 HDMI; 3840x2160 ~ 1024x768 @ 800 / 960fps
-
Display Mode
1 / 4 / 9 / 16 / 32 Split, Sequence, PIP
RECORDING
-
Compression
H.264, H.265
-
Recording Speed
800 / 960fps @ 8MP
-
Max. Recording
256Mbps
-
Recording Mode
Continuous, Motion, Alarm, C+M, C+A, M+A, C+M+A, Panic
-
Pre / Post Alarm
1~5sec / 5sec~1hour
PLAYBACK
-
Simultaneous Playback
1 / 4 / 9 / 16 / 32 Split
-
Playback Mode
Backward, Forward 2~64x
-
Search Mode
Time, Event, Thumbnail, Text, Smart (Motion)
NETWORK
-
Ethernet
WAN: 1 RJ45 10/100/1000 Base-T PoE : 16 RJ45 10/100 Base-T PoE Power : 130W(IEEE802.3at Compliance)
-
Max. Output Throughput
Unlimited (Guarantee 576Mbps, Support Bandwidth Control)
-
Remote Monitoring
Web, ATVision IP CMS & Mobile Apps
GENERAL
-
Text In
POS/ATM (ASCII, Network)
-
Internal HDD
4 SATA up to 12TB each, total 48TB
-
Backup
USB: AVI, H4V, MP4 File Formats
-
Audio
1 RCA Input / 1 RCA Output
-
Alarm
16 Input / 1 Output (Terminal Block)
-
Serial Port
1 RS485 (Terminal Block)
-
USB
2 USB2.0, 1 USB3.0
-
Rack Mountable
Rack Ears Included
-
Operating Humidity
0~90% RH (Non-Condensing)
-
Operating Temperature
32°~114°F (0~+45ºC)
-
Power Supply
100 - 220VAC
-
Power Consumption
35W (with 2 HDD)
-
Dimension(WxHxD)
17.2 x 3.5 x 14in (435.7 x 88.7 x 356mm)
-
Net Weight
9.9lb (4.5kg) (without HDD)
-
Conformity Certifications
FCC, CE, UL
